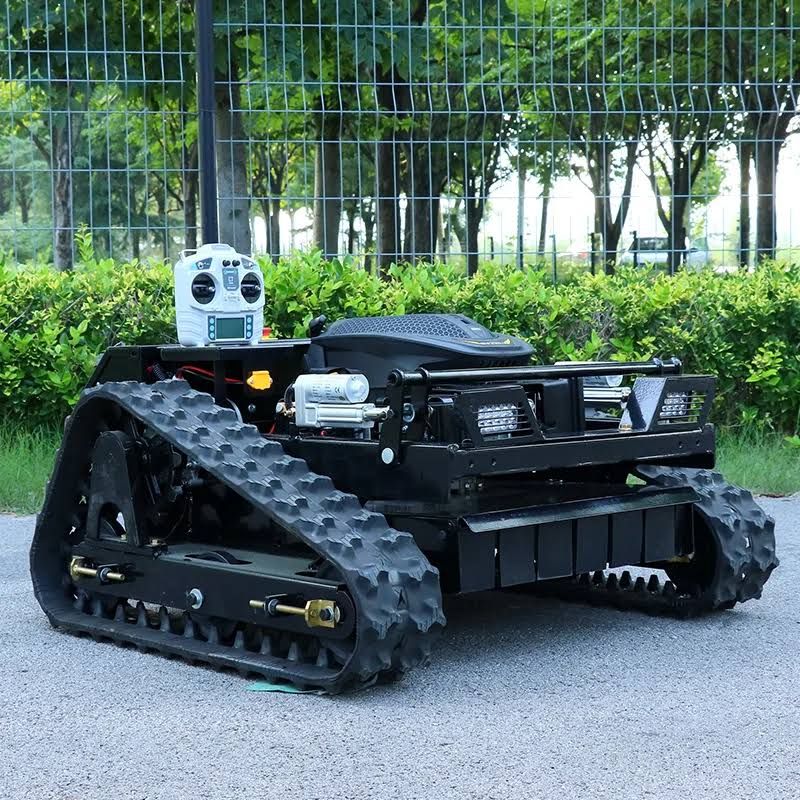

Thank you for choosing the AWY550 Robot Remote Control Lawn Mower. This powerful and efficient machine is designed to simplify your lawn care tasks, especially in challenging terrains. Featuring a 224CC gasoline engine with electric start and a robust track system, it offers precise control and excellent maneuverability. This manual provides essential information for safe operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your mower.
Always operate the mower from a safe distance using the remote control.
Keep hands, feet, and clothing away from moving parts, especially the cutting blades.
Ensure the work area is clear of debris, rocks, and other objects that could be thrown by the blades.
Never allow children or untrained individuals to operate the mower.
Wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, and sturdy footwear.
Do not operate the mower on excessively steep slopes beyond its rated gradeability (45 degrees).
Turn off the engine and disconnect the spark plug wire before performing any maintenance or clearing blockages.
Refuel in a well-ventilated area with the engine off and cool. Avoid spilling fuel.
Store the mower and fuel in a secure, well-ventilated area away from ignition sources.
In case of emergency, use the emergency stop button on the mower or remote control immediately.
Unpacking: Carefully remove the mower and all accessories from the packaging. Inspect for any shipping damage.
Fueling: Fill the fuel tank with fresh, unleaded gasoline. Refer to the engine manual for specific fuel requirements. Do not overfill.
Engine Oil: Check the engine oil level using the dipstick. If low, add recommended engine oil to the 'Full' mark. (Refer to engine manual for oil type and capacity).
Battery Connection: Ensure the 24V/24AH battery is securely connected. If it's a new unit or has been stored, ensure the battery is fully charged before first use.

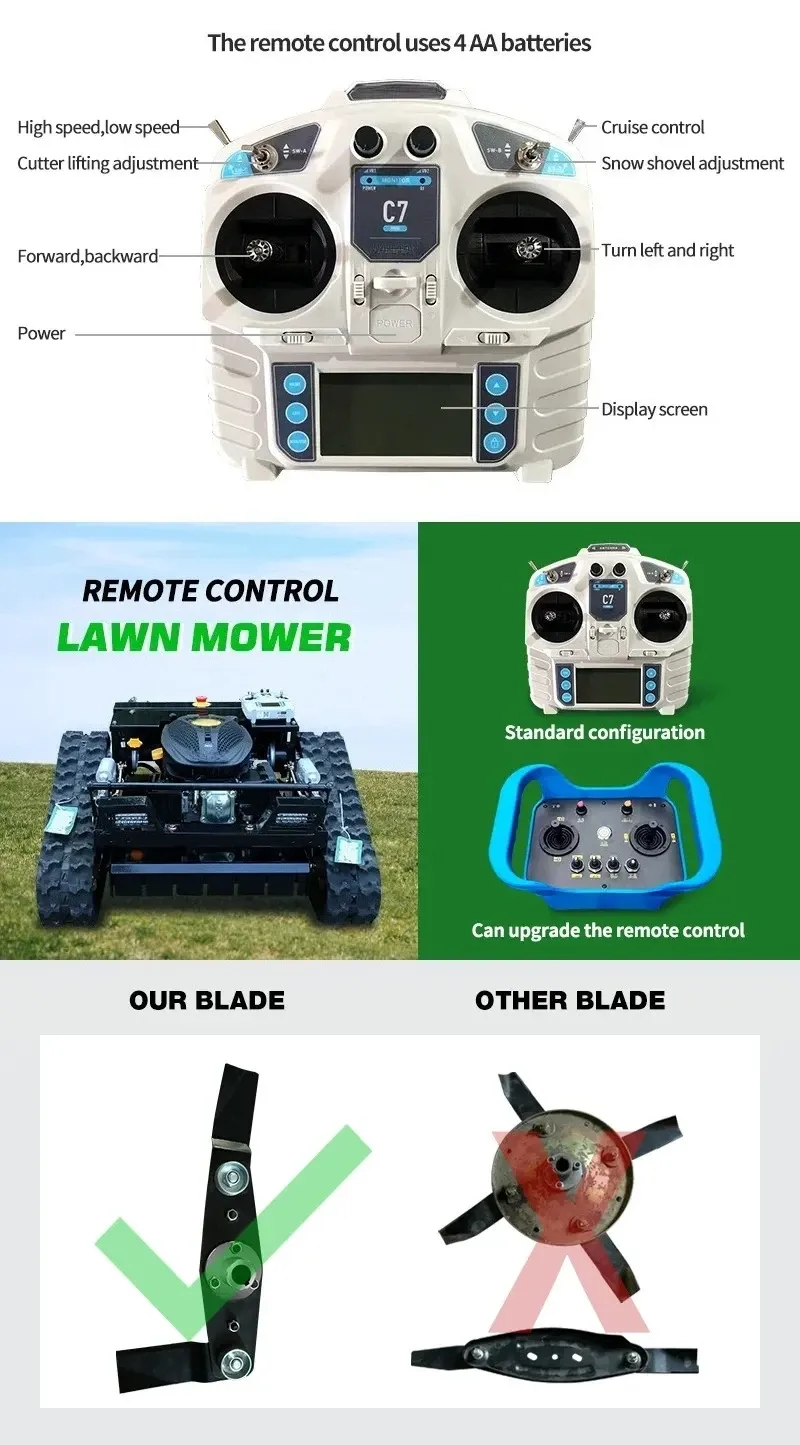

Remote Control: Install batteries in the remote control unit. Power on the remote and ensure it pairs with the mower. Follow the remote control's specific instructions for pairing if necessary.
Cutting Height Adjustment: Adjust the cutting height to your desired level (20-150mm) using the designated mechanism. Start with a higher setting for initial cuts, especially in tall grass.
Pre-Operation Check: Before each use, visually inspect the mower for loose parts, damaged blades, or leaks. Ensure all guards are in place.
